This harness allows GPS NMEA data to be output from FjDynamics' autosteer systems into other controllers... I.E. for Air-drills, Planters, Sprayers, etc.
Connector is standard 9-pin serial.

NAV-900 Standard Multi Purpose mount plate

Fixes to Trimble Spar mounts or can be used with VHB taped mount feet for universal applications to a wide range of agricultural vehicles

Note:VHB taped mounting is not recommended for high-precision auto guidance installations as some cabs can have flexibility in their structure, for ultimate performance a more rigid option is preferred

Optional Vehicle Specific NAV-900 mount plates are also available - (See Specialty Roof Brackets section)

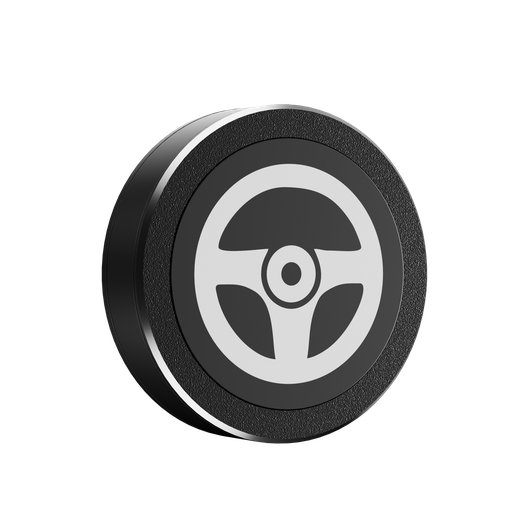

The FjDynamics MiniControl is a simple, one-button pushbutton for engaging and disengaging the autosteer. Tape it, or screw it anywhere in the cab. It is 1" around, and 3/8" tall. No need for any external wires, as it connects wirelessly to the GPS system.

The FjDynamics Acre Recording Harness ties into existing relays or switches to enable automatic coverage logging based on electronic signals.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #20 Hub.

Splines: 48
Diameter: 19.3mm
Height: 75mm

Fits:
JCB 3170, 3190, and Fastrac series.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: 36
Diameter: 17.775mm
Height: 75mm

Fits:
Challenger: A, B, C, D, E series two-digit tractors (E.G. 65, 75, 85)
SOME Steiger 9100, 9200, 9300 series tractors

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #18 Hub.

Splines: 40
Diameter: 17.704 mm
Height: 75 mm

Fits:
New Holland T5, TM, TL, and TS Series Tractors
CaseIH MXM, JXU, Farmall series

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #14 Hub.

Splines: 36
Diameter: 15.697mm
Height: 75mm

Fits:
Challenger: MT, MT-A, MT-B, MT-C, MT-D, MT-E 400, 500, 600 Series tractors
Massey Ferguson: 5-, 6-, 7-, and 8- series tractors
Claas: Arion 500 and 600 series; Axion 800 Series.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the a custom manufactured special hub.

Splines: 0 - round hole.
Diameter: 0.75"
Height: 125mm

Fits:
Macdon, Prairie Star, Westward Swathers, 8, 9 series, and M-150 and early M155's with a round 3/4" shaft, with a roll pin hole.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: 36
Diameter: 20.3 mm
Height: 75mm

Fits:
Fendt 200, 300, 400, 500, 700, 800, 900 Vario and older tractors
Deutz 7 Series, M Series, TTV Series, and 265
Case IH CVX Series

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: None; Keyed Shaft, 5mm key.
Diameter: 24.35 mm
Height: 75mm

Fits:
Claas Lexion, Tucano, Dominator combines.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #57 Hub.

Splines: 32
Diameter: 28mm
Height: 75 mm

Fits:
Willmar and Spra-Coupe Sprayers

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #15 Hub.

Splines: 36
Diameter: 15.875mm
Height: 125mm

Fits:
Case IH and New Holland 4WD and large frame FWA tractors, among others.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #6 Hub.

Splines: 36
Diameter: 15.875mm
Height: 75mm

Fits:
Case IH and New Holland (older) That do not have the large left hand shifter and accompanying console. For tractors which do have the left hand shifter and console, please use #15, which is longer.

Motor Hub Adapter; Included with every kit, but also purchased separately. These hubs fit different steering columns. Check your measurements accurately before ordering or contact our sales staff for confirmation.

This is the #4 Hub.

Splines: 36
Diameter: 22.1mm
Height: 75mm

Fits:
Most common hub. Fits John Deere (most models), Versatile (all models), and many more.

3-pin M12 to 8-pin AMP
•
Enables compatibility with Serial Link and the
scoreboard for the Libra Cart system
•
6ft long

3-pin M12 to pigtail wire ends
•
Powers the Serial Link hardware and scoreboard
•
15ft long

Receiver brackets. Fits all current (CoreNav, WiNav) FjDynamics Receivers. Self aligning. Come with double sided table for mounting.

Heavy Duty, High Torque clamping bracket for round steering tubes with a diameter of 1 1/2" +/- 1/4".
